Operation:
1 Prepare the installation tool.
2. Open the packaging and check the parts.
3. Install the pressure washer.
4. Fill engine oil and gasoline.
5. Start the engine
1) Turn the butterfly valve to the left, the fuel regulator to the right and the engine switch to "ON", align the hose and pull the recoil starter handle.
2) After the engine is started, turn the throttle to the right.
3) Insert the water supply hose into the water.
Technical data:

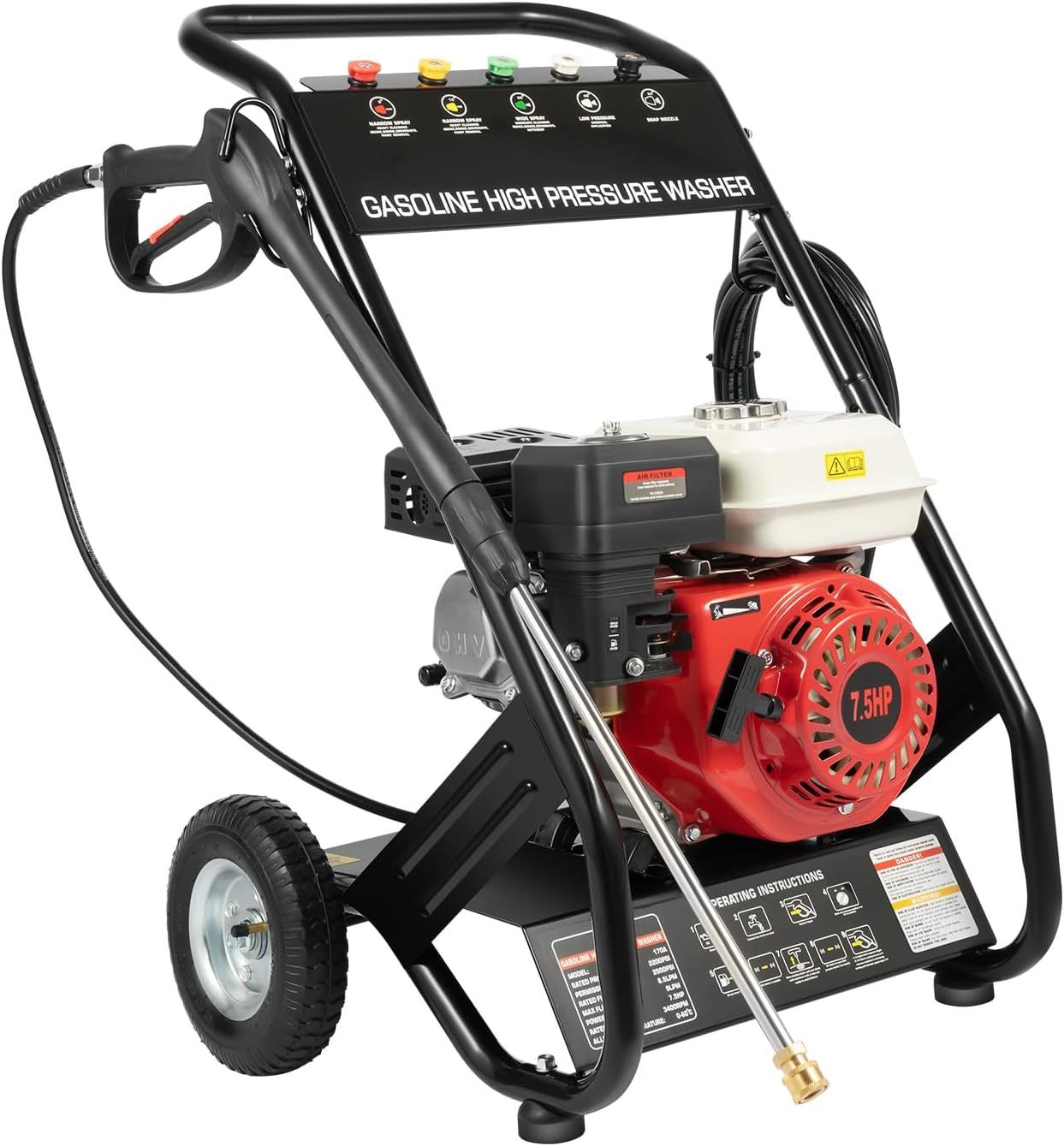

Model: NL 150
Style: Modern
Colour: black, red.
Soap box included: Yes
Material: Iron, Rubber, PVC
Processing: Varnishing, Anodized
Starting system: manual starting.
Power Source: Petrol
Engine Type: 4 Stroke, Single Cylinder, Air Cooled
Speed: 3400 RPM
Power: 7.5 HP
Petrol type: 92# or 95#
Engine Oil Tank Capacity: 700ml/671g/0.18Gal
Pump oil tank capacity: 3.5L/118.35Oz/0.9Gal
Max. Flow rate: 2.3 GPM.
Wheel diameter: 8 inches.
Chemical hose length: 1m
Water inlet hose length: 2m
High pressure hose length: 8m
Working pressure: 170-190 bar, 2200 PSI
Nozzle angle: 0° (red), 15° (yellow), 25° (green), 40° (white), bubble nozzle (black).
Product dimensions: 51.5 x 46.5 x 51.5 cm.
Gross weight: 30kg
Box contents:
1 x petrol pressure washer.
1 x Spray Gun with Extension Rod
1 x Water Inlet Hose
1 x Chemical Hose
1 x high pressure hose.
1* Candle Sleeve
1 x Filter
1 x Breather Cap
1* English Manual
Other accessories for installation and use
